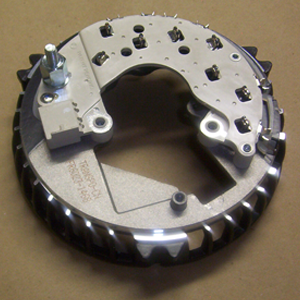

FDA-06-R2 FORD “6G” 130-135 AMP. RECTIFIER )

Description

FDA-06-R2 FORD 130-135 AMP.  RECTIFIER for use with  FDA-06A or B alternator Repair Kit (Ref. no. FDA06R2, FR6023),

Rectifier for:Ford 6G Series 130-135A* IR/IF Alternators
Used On: (1998-2010) Ford, Lincoln, Mercury

Lester Nos: 7795, 8253, 8315
Dim: 149mm Heat Sink OD
Note: FDA-06-R2 (FR6023) is the early design 8-diode rectifier for 6G stators with 2-leads/phase and Y-connection.
Features:
– 50A/300V press-fit diodes, OE validated
– Crimp-weld diode terminations
– Heavy duty copper connections reduce high-amp heat generation
– Pre-tinned terminals improves solder-ability
– Drop-down stator connection improves salvage rate for short-lead stators
